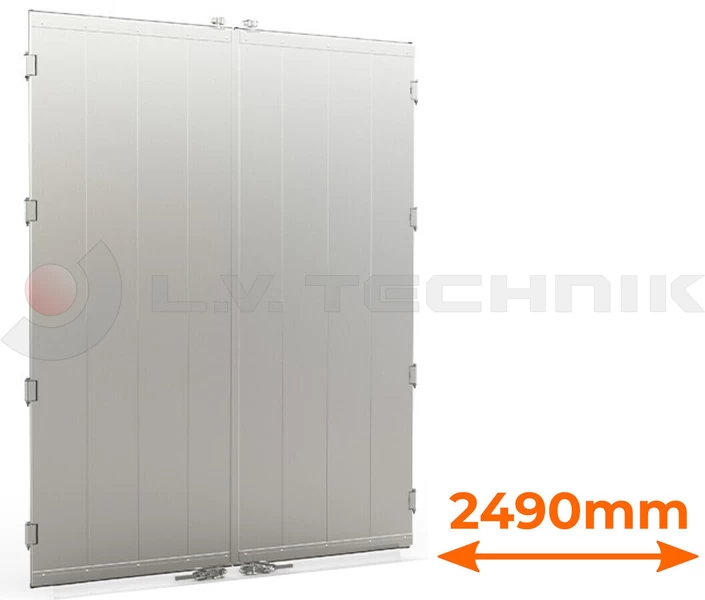

Aluminium door 2400-2500mm
Code
ZB.2250S
Price
Please sign in

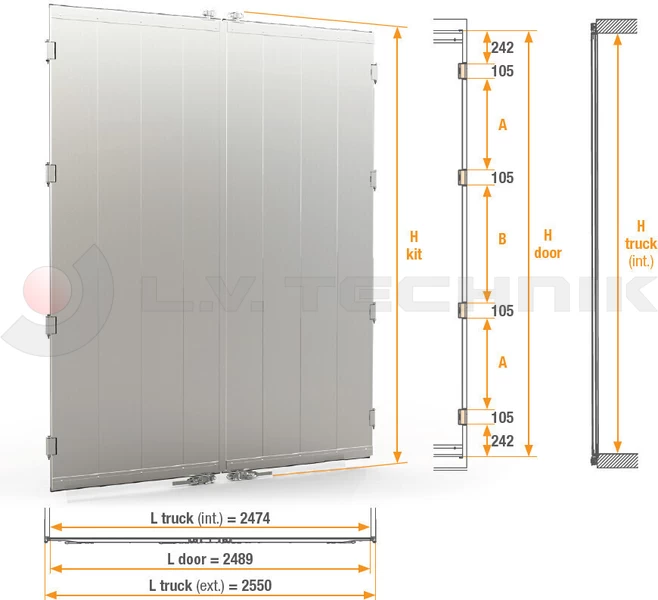

H kit (mm)
H door (mm)
H truck (int.) (mm)
A (mm)
B (mm)
2649
2532
2500
543
543
Stock
Lajosmizse
in stock
Szigetszentmiklós
-

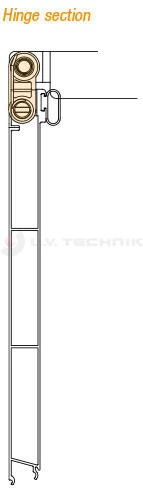

• double pivot hinge (steel weldable or aluminium rivetable counter part can be ordered separately)
• 2x locking kit
• applicable for trucks with internal height 2400-2500mm (each kit is reducible by 100mm, 50mm on the top and 50mm on the bottom)
• panel mounted, with mounting instructions
Material
anodized aluminium
Weight
91,8 kg
Cross reference
Takler
TA62250
