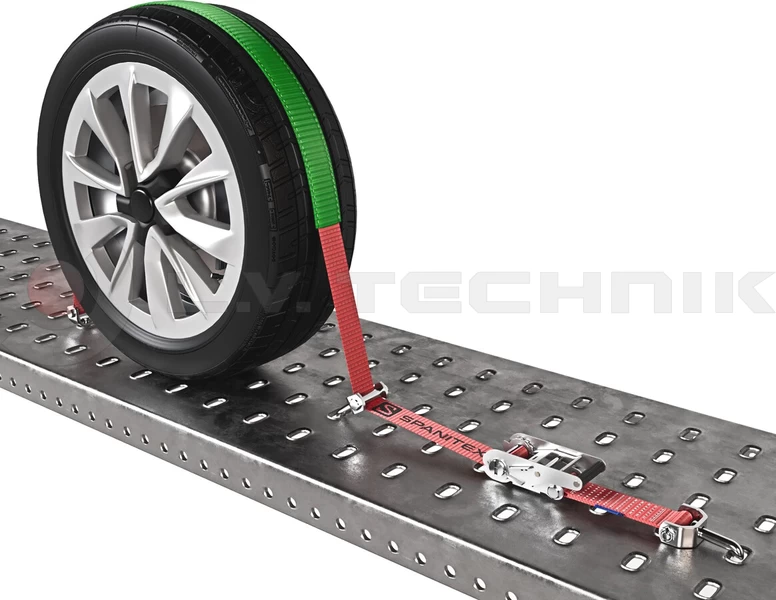

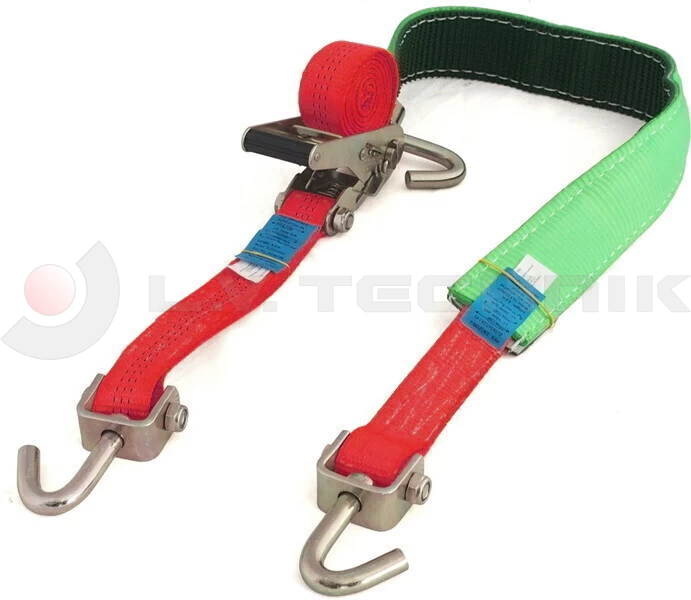

Car lashing strap 5t 3p antislip mat SJ

Code
50R250.50SJ2.34
Price
Please sign in
Strap width
Complete length
Short end length
Long end length
50mm
3,4m
0,4m
3m
Shf
Stf
LC
LC tie down
50daN
250daN
25kN
50kN
Material
Elongation
Certificate
PES
< 5%
TÜV GS

RATCHET
a short handle ratchet, with 250daN SHF value
• made of metal, more durable than market standard, thick surface treatment for long life
• handle with plastic coating for comfortable usage

WEBBING
• with 80cm long anti-slip strap
• 50mm wide polyester, resistant to UV light with a breaking capacity of 75kN

HOOK
• with a swivel J-hook made of 16mm round bars at both ends
• free running swivel J-hook on the long-end

EN12195-2
• blue label in accordance with the regulation, sewn inside the belt hook to be protected against environmental impacts

QUALITY
• TÜV Rheinland tested, TÜV GS certified product
• the certificate number is indicated on the blue label
• quality is regularly checked using a calibrated tensile testing machine (Certificate No: AGK-167/2024)

Weight
3,05 kg

Stock
Lajosmizse
in stock
Szigetszentmiklós
-

LC

Maximum force for use in straight pull that a web lashing is designed to sustain in use. According to EN 12195-2 samples must be tested during the production. During the tests the complete lashing strap must sustain 2 x LC force, while the webbing must endure 3 x LC force.

LC tie down

The maximal tie down force affecting the load while the lashing strap sustains the maximum allowed force. The representation of this value is not regulated by EN12195-2, however common speech refer it as the capacity of the lashing strap. For example a "5 ton" lashing strap has an LC value of 2500daN and LC tie down value of 5000daN.

SHF (standard hand force)

Hand operating force applied on the ratchet (50daN = ~50kg). The handle has to be operated with this force to generate the standard tension force in the strap.

STF (standard tension force)

Residual force in the strap after release of the handle of the ratchet. The longer the ratchet is, the stronger force in the strap generated.
