Aluminium door 2100-2200mm
Code
ZB.0220
Price
Please sign in

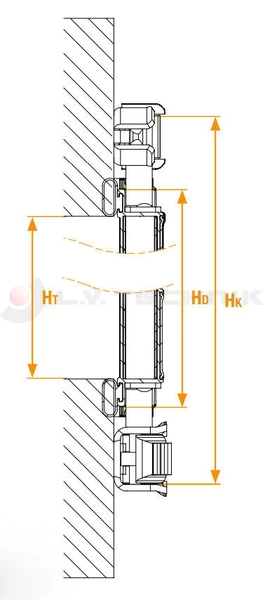

HK (mm)
HD (mm)
HT (mm)

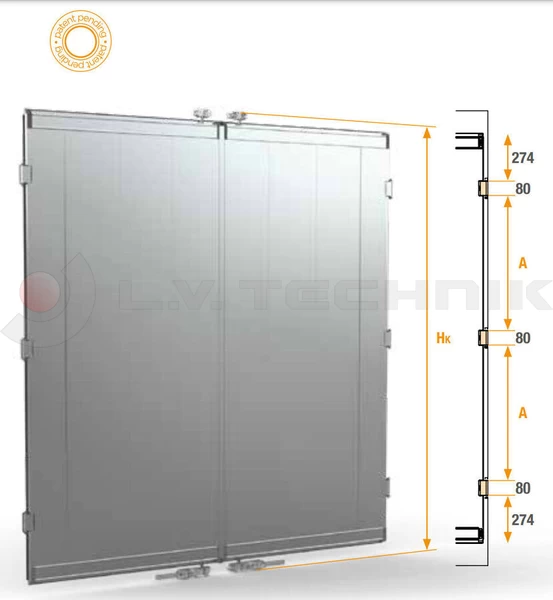

A (mm)
Lmin (mm)
2353
2241
2200
727
2100
Lmax (mm)

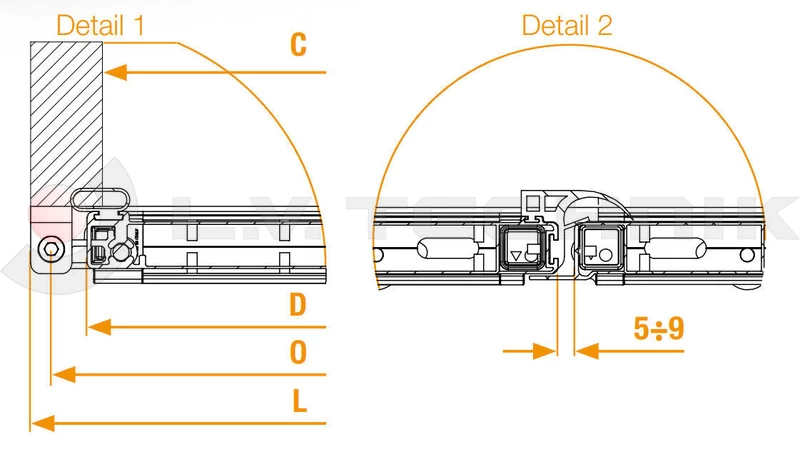

Cmin (mm)
Cmax (mm)
Dmin (mm)
Dmax (mm)
2350
2030
2280
2045
2295
Omin (mm)
Omax (mm)
2080
2330
Stock
Lajosmizse
in stock
Szigetszentmiklós
-

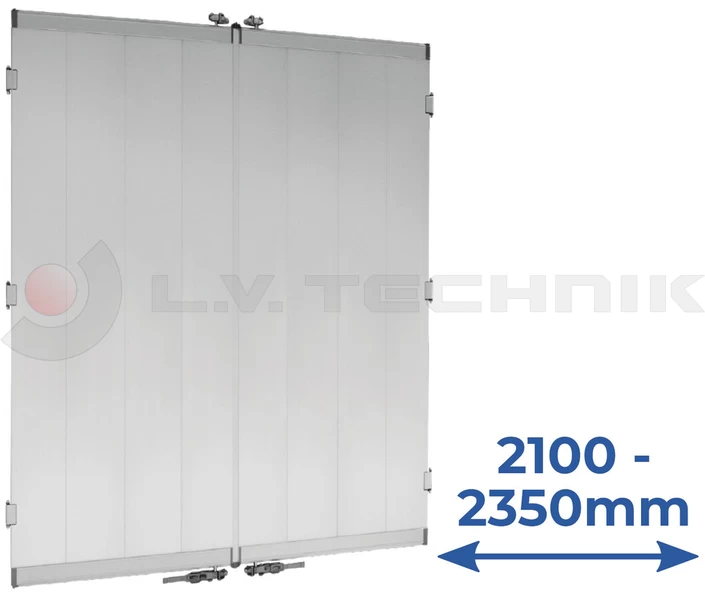

• adjustable width between 2100-2350mm

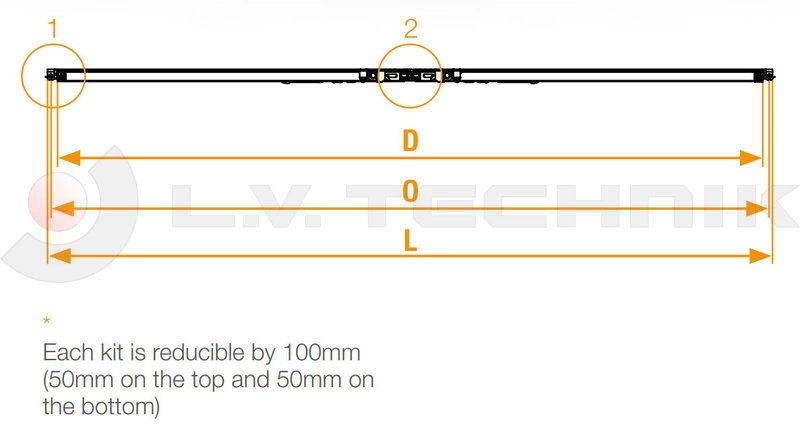

• applicable for trucks with internal height 2100-2200mm (each kit is reducible by 100mm, 50mm on the top and 50mm on the bottom)
• applicable for trucks with internal height 2000-2100mm (each kit is reducible by 100mm, 50mm on the top and 50mm on the bottom)
• double pivot hinge (steel weldable or aluminium rivetable counter part can be ordered separately)
• 2x locking kit
• panel mounted, with mounting instructions
Material
anodized aluminium
Weight
70,1 kg
Similar products
Cross reference
Takler
TA70220
