Aluminium door 2200-2300mm

Code
ZB.0230
Price
Please sign in

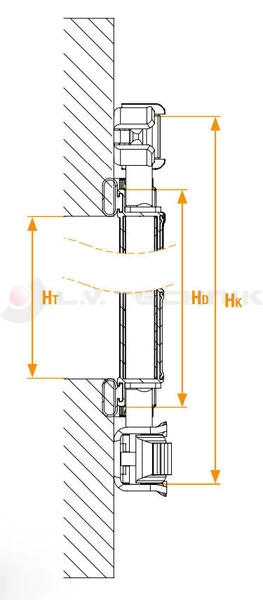

HK (mm)
HD (mm)
HT (mm)
A (mm)
Lmin (mm)
2453
2341
2300
777
2100
Lmax (mm)
Cmin (mm)
Cmax (mm)
Dmin (mm)
Dmax (mm)
2350
2030
2280
2045
2295
Omin (mm)
Omax (mm)
2080
2330

Stock
Lajosmizse
-
Szigetszentmiklós
-

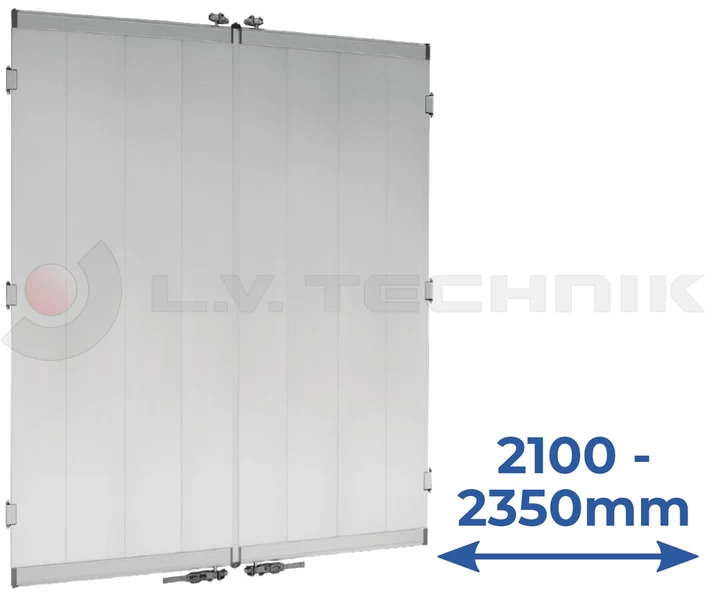

• adjustable width between 2100-2350mm

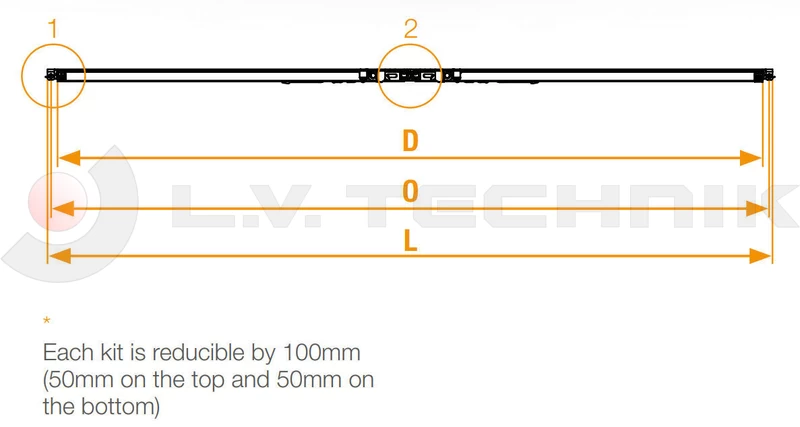

• applicable for trucks with internal height 2200-2300mm (each kit is reducible by 100mm, 50mm on the top and 50mm on the bottom)

• double pivot hinge (steel weldable or aluminium rivetable counter part can be ordered separately)

• 2x locking kit

• panel mounted, with mounting instructions

Material
anodized aluminium
Weight
72,6 kg

Cross reference
Takler
TA70230
