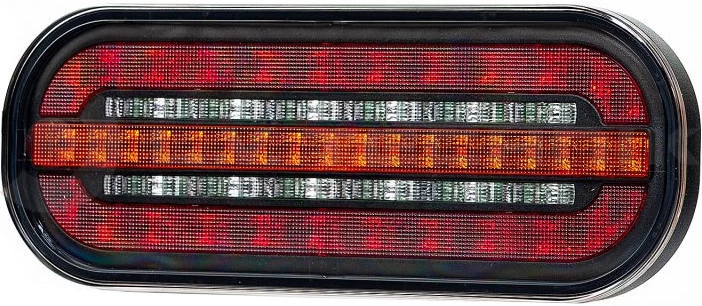

Universal LED rear lamp 3-functional

- 3-functional universal LED rear lamp
- low power consumption
- horizontal assembly only
- european homologation E9
- ElectroMagnetic Compatibility (EMC); R10 certificate
- shock-resistance – PC lampshade
- reverse polarity protection system
- dynamic indicator

Lamp functions:
- rear running light
- STOP light
- indicator

Technical specification:
- supply voltage: 12-36V DC
- operating temperature: –40°C to +55°C
- lamp is resistant to any weather conditions
- lamp is fully airtight

Power consumption:
- rear running light – 12V/24V = 0,1A/0,1A
- STOP light – 12V/24V = 0,2A/0,2A
- indicator – 12V/24V = 0,35A/0,35A

Power consumption / Rated power:
- rear position light – 12/24V = 1,5W/3W
- STOP light – 12V/24V = 2,5W/5W
- indicator – 12V/24V = 4,5W/9W
