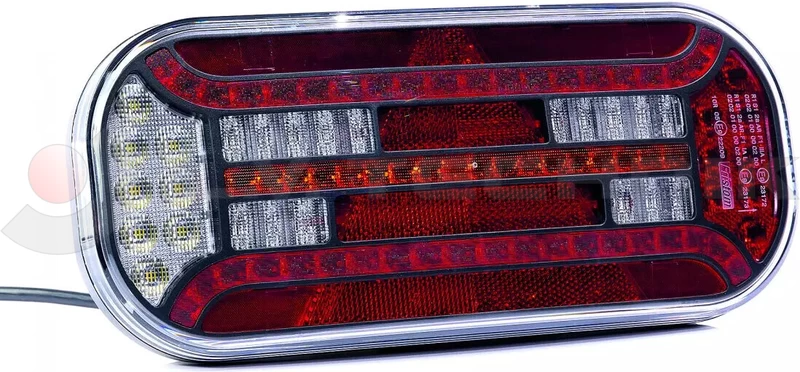

Universal LED rear lamp 6 functions left

- Universal rear LED lamp with 1m cable
- low power consumption
- european homologation E9
- ElectroMagnetic Compatibility (EMC) homologation
- anti-shock modules resistant to any weather conditions
- reverse polarity protection

Technical specification:
- supply voltage: 12-36V DC
- operating temperature: –40°C to +55°C
- lamp is resistant to any weather conditions
- lamp is fully airtight

Lamp functions:
- rear running light
- STOP light
- direction indicator
- fog lamp
- triangle reflex reflector
- reverse light

LED power consumption:
- rear position light – 12V/24V = 0,2A/0,2A
- brake light (STOP) – 12V/24V = 0,3A/0,3A
- direction indicator – 12V/24V = 0,85A/0,85A
- reverse light – 12V/24V = 0,2A/0,25A
- rear fog lamp – 12V/24V = 0,15A/0,15A

Power consumption (rated power):
- rear position light – 12V/24V = 2,5W/5W
- brake light (STOP) – 12V/24V = 4W/8W
- direction indicator – 12V/24V = 10W/20W
- reverse light – 12V/24V = 2,5W/6W
- rear fog lamp – 12V/24V = 2W/4W
