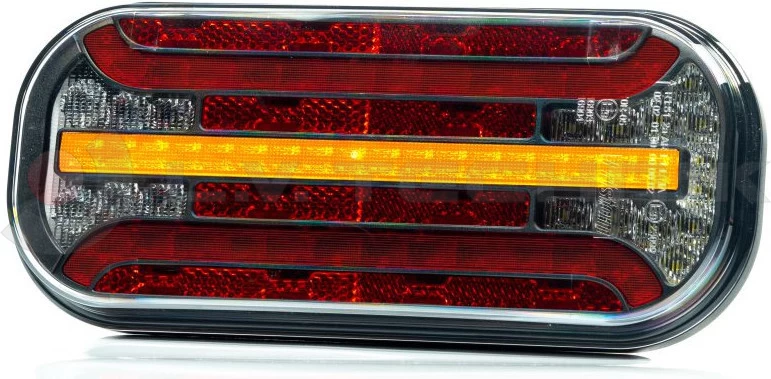

Universal LED rear lamp 5-functional

- 5-functional LED rear lamp
- low power consumption
- european homologation E9
- ElectroMagnetic Compatibility (EMC) homologation R10
- shock-resistance – PC lampshade
- reverse polarity protection system

Technical specification:
- rear running light
- STOP light
- indicator
- reversing light
- reflector

Technical specification:
- supply voltage: 12-36V DC
- operating temperature: –40°C to +55°C
- lamp is resistant to any weather conditions
- lamp is fully airtight

Power consumption:
- rear running light – 12V/24V = 0,12A/0,12A
- STOP light – 12V/24V = 0,12A/0,12A
- indicator – 12V/24V = 0,35A/0,35A
- reversing light – 12V/24V = 0,22A/0,22A

Power consumption / Rated power:
- rear running light – 12/24V = 1,5W/3W
- STOP light – 12V/24V = 1,5W/3W
- indicator – 12V/24V = 4,5W/9W
- reversing light – 12/24V = 2,8W/5,5W
